Vehicle Troubleshooting Guide
Use a simple vehicle troubleshooting guide: match the symptom, narrow down the operating condition, then run a confirming test before buying parts. I have seen guessing turn a weak battery, stuck thermostat, or worn brake part into a tow bill, repeat repairs, or a safety risk. This guide maps common no-starts, overheating, shaking, warning lights, charging faults, and brake concerns to the likely system, the first checks to make, and the test that confirms the fault.

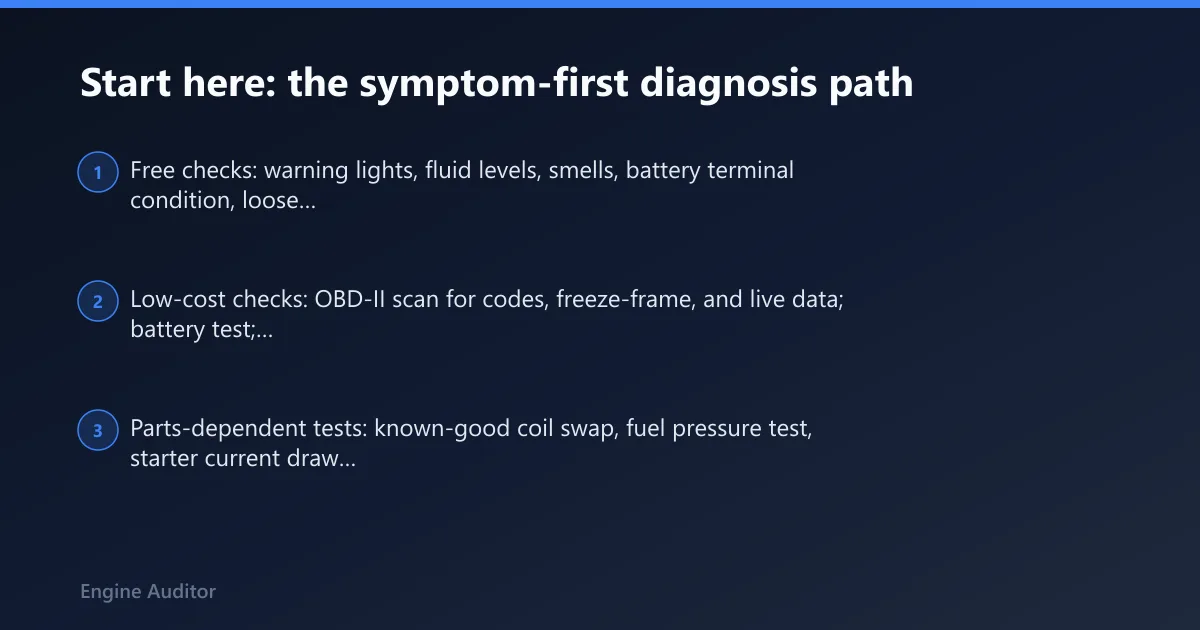

Start here: the symptom-first diagnosis path
Record when the problem happens
Start with the operating state, because the same symptom means different things in different conditions. A stall at cold start points in one direction. A stall after a hot soak points in another.
Write down whether the fault shows up at cold start, hot restart, idle, light throttle, hard acceleration, uphill load, braking, stop-and-go traffic heat, or steady highway speed. Also note whether it is getting worse, staying the same, or only appearing after rain, a fuel stop, a battery replacement, a repair, or a curb impact.
What changed right before the fault
Recent changes often cut the diagnosis time in half. A no-start after battery work can be a loose terminal or disturbed ground. A new vibration after a tire impact can be a bent wheel, separated tire, or shifted alignment rather than an engine problem.
Fresh fuel, recent plug replacement, cooling work, brake service, and accessory installs all matter. So does weather. Heat exposes weak starters and marginal batteries. Cold exposes low state of charge, sticky relays, and tired ignition parts.
Sort checks by cost and proof
- Free checks: warning lights, fluid levels, smells, battery terminal condition, loose connectors, damaged wiring, blown fuses, belt condition, and whether the symptom can be repeated safely.
- Low-cost checks: OBD-II scan for codes, freeze-frame, and live data; battery test; voltage checks; coolant pressure or leak checks; brake fluid and pedal feel checks; basic fuel and spark triage.
- Parts-dependent tests: known-good coil swap, fuel pressure test, starter current draw test, charging test under load, parasitic draw isolation, and deeper cooling, brake, or suspension inspection.
Know the no-drive signs before you begin
Stop driving if the check engine light is flashing, the temperature warning is on or the gauge is climbing fast, the brake pedal suddenly goes soft or drops, there is a fuel leak, the battery warning appears with fading electrical power, or vibration becomes severe enough to affect steering or braking. Those are diagnosis points, not “see if it clears up” moments.
What should I check first when a car acts up?
Check battery state of charge and terminal fit, read every warning light on the dash, verify coolant, brake fluid, and oil level, and look under the car and around the engine for fresh leaks before you buy anything. Then scan the car for codes. That catches power loss, low coolant, charging faults, and stored trouble codes early. In five minutes, I can often change the whole diagnosis path by spotting loose terminals, a thrown belt, an open fuse, or a half-seated connector.
Battery voltage, terminal condition, and obvious power loss
The battery is a good starting point for the rest of the test plan. Check state of charge, resting voltage against the reference used by the tester or service info, and the load-test result. Then inspect terminal condition. White or green buildup, loose clamps, and damaged grounds can mimic a bad starter, alternator, or engine control fault.
If the dash stays dark, accessories reset, or cranking speed changes from one attempt to the next, start here before chasing sensors.
Fluid levels, leaks, smells, and warning lights
Coolant level, brake fluid level, engine oil warning behavior, and fuel smell all change the order of work. A sweet smell with white smoke points to a cooling issue, which is why guides about white smoke with a sweet smell get so much attention. Low brake fluid with a soft pedal is not a “finish the errands first” problem.
Belts, fuses, connectors, and wiring damage
A loose intake duct can create lean codes and hard starts. A damaged alternator belt can trigger charging complaints that look like battery failure. A blown fuse may be the symptom, not the cause, especially if it fails again right away.
That matters with repeat electrical faults such as a brake light fuse that keeps blowing. The fuse proves overload or a short exists. It does not prove the switch or lamp is bad.
Why a quick OBD-II scan belongs near the start
An OBD-II scan tool is a starting clue, not a parts selector. Read diagnostic trouble codes, capture freeze-frame data from the first event if the tool allows it, and watch live data such as coolant temperature, short- and long-term fuel trims, upstream O2 response, MAP or MAF readings, and misfire counters at idle and under light snap throttle. For check-engine and drivability problems, that context ties the fault to engine load, temperature, and speed, and it helps separate a real system fault from a basic maintenance issue.
How do I troubleshoot a car problem step by step?
Troubleshoot by reproducing the symptom safely, narrowing it by operating condition, then choosing one proving test before touching parts. Use trouble codes, freeze-frame, and live data as clues, then stop when one measurement clearly supports one system and rules out the common false leads.
Verify the complaint without adding risk
Do not road-test a car with serious brake problems, overheating, fuel leaks, or a flashing check engine light. For other faults, reproduce the symptom in the lightest condition that still shows it. If it shakes only under acceleration, do not begin with a high-speed run. If it stalls hot, let it idle through warm-up, shut it down, and restart after a heat soak.
Choose one proving test for the symptom
Pick the first test that can clearly split one likely cause from another. For a no-crank, I start with battery condition, voltage drop on the positive and ground side during a crank request, and starter control voltage before I blame the starter. For a hot-traffic overheat, I command or confirm radiator fan operation and verify actual coolant temperature before I blame the thermostat. For a highway-speed shake, I inspect tire tread, sidewalls, wheel runout, and balance history before I go near plugs or coils.
Use freeze-frame and live data
Freeze-frame matters because it shows the fault at the moment the module set the code: coolant temperature, engine load, RPM, speed, fuel trim, and sometimes throttle angle or intake airflow. Live data then shows what changes in real time. If the fault set at idle with a warm engine, that points away from a high-load issue. If misfire counts climb only under load, focus on ignition output, fuel delivery, and plug condition. If fuel trims swing hard at idle and settle at speed, vacuum leaks move up the list.
Decide when the evidence is strong enough
Stop testing when the symptom, code pattern, and one confirming measurement line up. Keep going when two systems can still explain the same fault. A weak battery and failing starter can both cause slow cranking. Misfire and fuel starvation can both cause bucking under load. Good diagnosis ends when one path explains all the clues better than the rest.
What tools do I need for basic vehicle troubleshooting?
A basic troubleshooting kit needs a scan tool, a multimeter or battery tester, simple fluid and pressure check gear, and a way to record what happened. The useful tools are the ones that prove a system good or bad. Large shopping lists do not shorten diagnosis.
OBD-II scan tool
The scan tool should read diagnostic trouble codes and, if available, freeze-frame and live data. That matters for check-engine lights, misfire tracking, sensor plausibility, coolant temperature trends, and seeing whether the fault appears at cold start, hot idle, or loaded acceleration.
Battery and charging tools
A multimeter and battery tester cover the 12V battery, alternator, and many starter complaints. They also support an overnight battery drain diagnosis with a parasitic draw test, where amperage is measured and the fault is isolated fuse by fuse.
Cooling, fuel, and brake basics
For cooling, basic pressure or leak checking and fan operation checks go a long way. For fuel, a pressure test or at least pump-prime listening and pressure-retention clues help. For brakes, fluid level, pedal feel, visible leaks, and line condition are the first checks before any master cylinder guess.
Symptom logs and reference material
A notebook or phone log beats memory. Record the exact operating condition, outside temperature, warning lights, smells, and whether the problem changed after restart. Readers who need follow-up examples will find that VehicleRuns claims to offer 17,000+ DIY guides across 25+ manufacturers, including Toyota, Ford, and Honda, plus issue-specific examples such as engine overheating, AC failure diagnosis, strange car noises, a faulty air intake sensor, a sticking brake caliper, an engine mount clunk when shifting into gear, and white smoke with a sweet smell.
How do I tell if the battery, starter, or alternator is the issue?
Separate these three by watching what happens during and after cranking. Battery faults change cranking speed and voltage reserve. Starter faults change engagement and current draw. Alternator faults show up after the engine starts, especially with a battery warning and system voltage that drops under electrical load.
No-crank, slow-crank, single-click, and rapid-click patterns
No-crank with full dash power points toward starter control, starter engagement failure, park-neutral or clutch input, or an anti-theft issue.
Slow crank points first to the battery, cables, grounds, or a dragging starter.
Rapid clicking usually means low available battery power or poor terminal contact.
Single heavy click suggests the starter solenoid is trying to engage but the motor is not turning, the engine is mechanically loaded, or cable resistance is high.
12V battery checks
Check resting voltage after the car has sat, then check state of charge and terminal condition. A proper load-test result matters more than appearance. A battery can look clean and still fail under demand. Corrosion hidden between the post and terminal can create voltage loss that acts like a bad starter.
Starter motor clues
Starter problems often show up as engagement failure, heat-soak no-crank after a hot shutdown, or current draw that looks excessive for the cranking speed produced. If battery condition is good and cable loss is low, but the starter clicks or drags, the starter moves up the list quickly.
Alternator clues
The alternator is belt-driven, so belt slip or tension loss matters. The classic pattern is a car that starts after a charge or jump, then returns with a battery warning, dim lights, or electrical behavior that worsens with blower, headlights, and rear defrost on. Confirm charging output and system voltage under load before condemning the battery again.

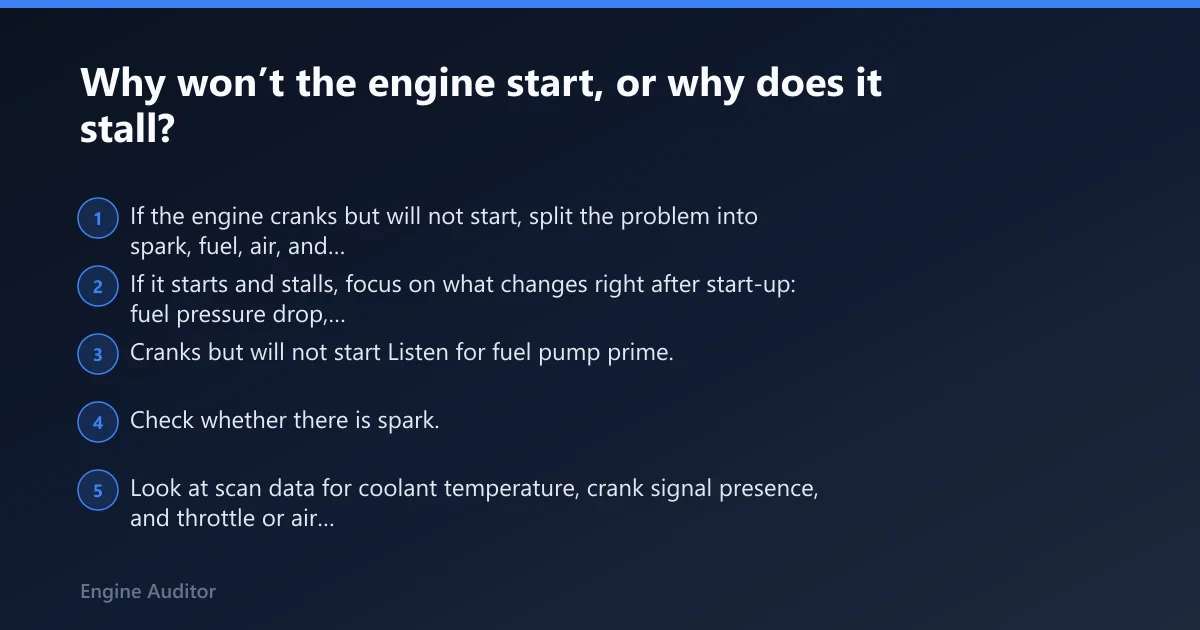

Why won’t the engine start, or why does it stall?
If the engine cranks but will not start, split the problem into spark, fuel, air, and control inputs before buying parts. If it starts and stalls, focus on what changes right after start-up: fuel pressure drop, ignition failure, anti-theft intervention, or a sensor signal that goes wrong hot.
Cranks but will not start
Listen for fuel pump prime. Check whether there is spark. Look at scan data for coolant temperature, crank signal presence, and throttle or air intake plausibility. A code can point toward a sensor circuit, but it does not prove the sensor itself is the failed part.
Ignition system checks
Ignition faults show up as hard starting, misfire, bucking under load, and stall-after-start behavior. Check spark plugs for age, fouling, gap wear, and signs of oil or coolant contamination. Check coils for pattern-related misfire clues, especially if one cylinder or bank stands out in data.
Fuel delivery checks
Fuel delivery faults show up as long crank, stall under load, restart after sitting, or hot restart trouble. Check for pump operation, fuel pressure if the system allows it, and whether pressure holds after shutdown. A restricted fuel filter or weak pump can look like ignition trouble at highway merge loads.
When a no-start is really wiring, anti-theft, or a sensor issue
If there is no injector pulse, no crank request, or a security indicator stays active, step back from fuel and ignition parts. Crank and cam signal faults, immobilizer problems, damaged wiring, and poor grounds can all create no-start symptoms while the mechanical parts are still fine.
What causes overheating, warning lights, and driveability faults?
These faults get sorted by operating condition and urgency. Overheating in traffic points first to fan and airflow. Warning lights need a stop-or-continue decision before any test. Driveability issues need codes, freeze-frame, and symptom timing to avoid confusing a misfire, fuel problem, and sensor issue.
What causes a car to overheat in traffic but not on the highway?
A car that overheats in traffic but cools on the highway usually has an airflow or low-speed cooling problem rather than a high-speed circulation problem. The first checks are radiator fan operation, airflow through the radiator, coolant level, and whether the thermostat and cooling system pressure behavior make sense.
At highway speed, ram air can cover for a weak fan or blocked airflow path. In traffic, the fan must do the work. If the fan does not run when temperature rises or the AC requests it, diagnosis moves to the fan motor, relay, control circuit, sensor input, or wiring. If the fan works but heat still builds in traffic, look harder at coolant level, trapped air, radiator restriction, thermostat behavior, and pressure loss from leaks.
Flashing check engine light, steady light, and drive/no-drive calls
A flashing check engine light usually means an active misfire severe enough to risk catalyst damage, so driving should stop unless the vehicle must be moved out of immediate danger. A steady light allows more controlled diagnosis, but the code still needs context from freeze-frame and live data before any parts decision.
Misfire under load, dead-coil events, and fuel faults can all trigger a flashing light. The proving step is to find whether misfire data, ignition output, and fuel delivery line up on the same cylinders and conditions.
Charging, temperature, and oil warnings that require an immediate stop
Temperature warnings, rapid overheating, oil pressure warnings, and charging failure with fading electrical systems all move the car into stop-driving territory. With charging faults, the engine may continue briefly, but ignition, fuel pump operation, electric steering assist, and transmission behavior can fall apart as system voltage drops.
How freeze-frame ties the warning to conditions
Freeze-frame tells whether the code set at cold idle, hot cruise, heavy load, or stop-and-go. That matters. A code captured during hot idle sends the diagnosis toward cooling airflow, low idle control, and heat-sensitive ignition parts. The same code at high load pushes the diagnosis toward fuel delivery, ignition demand, and sensor scaling under stress.
Why does the car shake, pull, or feel wrong when moving or braking?
Sort shake by when it happens: acceleration, steady speed, braking, or gear engagement. Acceleration shake often points to driveline, engine misfire, or loaded suspension faults. Speed-related shake points first to tires and wheels. Braking shake and pedal change move the brake system to the front of the line.
Why does my car shake when accelerating?
Shake during acceleration usually comes from a loaded system: engine misfire, fuel starvation, inner CV or axle problems, engine mount movement, or worn suspension parts that react to torque. The fastest split is whether the shake follows engine load and misfire behavior or follows wheel speed and driveline angle.
If the engine stumbles, the exhaust note changes, or the check engine light flashes under throttle, treat it like an ignition or fuel fault first. If the engine feels smooth but the body shudders as torque comes in, inspect tires, axle shafts, joints, mounts, and suspension bushings. An engine mount clunk when shifting into gear can sit right next to an acceleration shake complaint.
Tires and suspension: speed shake versus pull
A shake that builds with road speed and stays during coast usually points to tire balance, tire damage, wheel issues, or worn suspension components. A pull points toward alignment, tire conicity, brake drag, or uneven tire condition. Start with tires because they are fast to rule in or out and often create false leads elsewhere.
Brake system clues and stop-driving thresholds
Pedal feel matters more than noise. A soft pedal, sinking pedal, low fluid, or visible leak moves the car out of DIY road-test mode. Air in the lines, a failing master cylinder, a flexing hose, or a sticking caliper can all change braking feel. A sticking brake caliper can also create a pull, heat, and a false wheel-bearing suspicion.
When vibration points to engine misfire instead of wheels
If the vibration appears at idle, follows RPM rather than road speed, or gets worse uphill with the check engine light reacting, think engine before tires. If it appears only between certain speeds and remains even with light throttle changes, think wheel-tire or suspension before ignition parts.

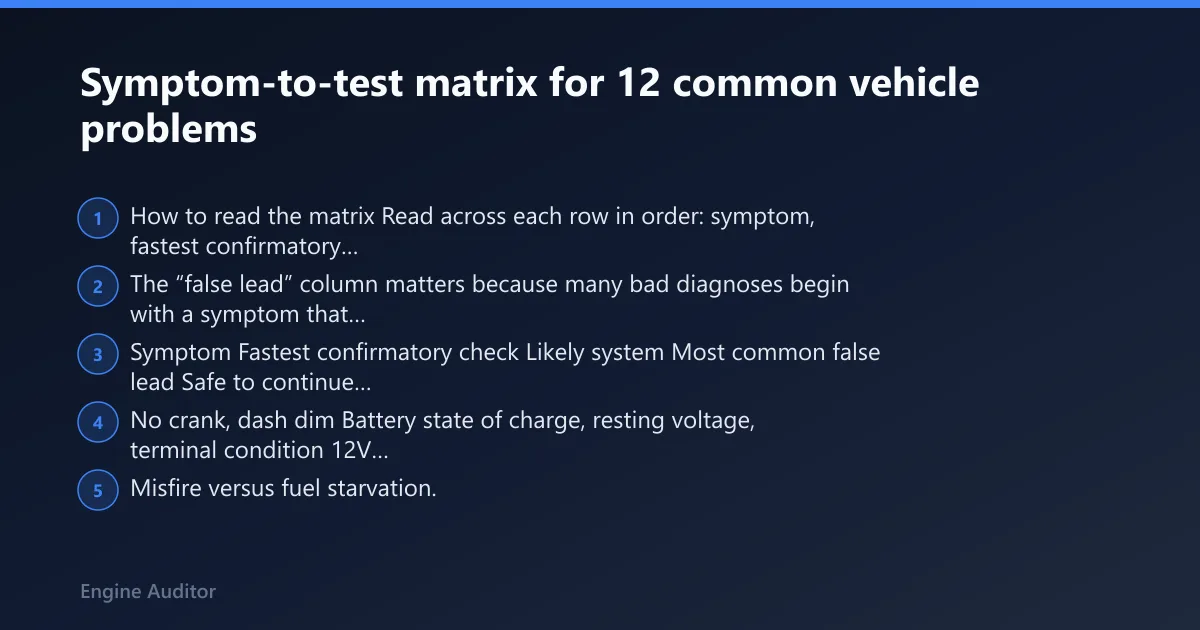

Symptom-to-test matrix for 12 common vehicle problems
How to read the matrix
Read across each row in order: symptom, fastest confirmatory check, likely system, common false lead, and whether driving is safe. The “false lead” column matters because many bad diagnoses begin with a symptom that belongs to more than one system.
| Symptom | Fastest confirmatory check | Likely system | Most common false lead | Safe to continue driving? |
|---|---|---|---|---|
| No crank, dash dim | Battery state of charge, resting voltage, terminal condition | 12V battery or cable/ground issue | Bad starter | No |
| Single click, no crank | Voltage drop and starter engagement check | Starter motor or high cable resistance | Dead battery | No |
| Starts after jump, dies later | Charging output and system voltage under load | Alternator or belt drive | Battery only | No |
| Overnight battery drain | Parasitic draw test with amperage measurement and fuse-by-fuse isolation | Electrical draw while off | Weak battery only | Usually yes, with caution |
| Cranks, will not start cold | Spark check and scan data review at cold start | Ignition or sensor/input fault | Fuel pump | No |
| Cranks, will not start hot | Check spark and fuel pressure after heat soak | Fuel delivery, starter heat effect, or crank/cam signal issue | Battery | No |
| Flashing check engine light under load | Scan misfire data and inspect ignition components | Ignition system or fuel delivery | Oxygen sensor | No |
| Overheats in traffic, cools on highway | Confirm radiator fan operation and coolant level | Cooling fan, airflow, thermostat, or low coolant | Head gasket first | No |
| Stalls at idle after warming up | Freeze-frame, live data, and vacuum/air intake check | Air intake, idle control, ignition, or fuel trim issue | Transmission problem | Usually no |
| Shakes during acceleration | Split by misfire signs versus driveline movement | Ignition/fuel or axle/mount issue | Tire balance | Maybe, only if mild and no flashing light |
| Shakes at highway speed | Tire and wheel inspection, then balance/alignment check | Tires, wheels, or suspension | Engine tune-up parts | Maybe, if mild and stable |
| Soft or sinking brake pedal | Fluid level, leak inspection, pedal hold test | Brake hydraulics, air in lines, or master cylinder | Brake pads only | No |
Common overlap cases that trap DIY diagnosis
Battery versus starter. Misfire versus fuel starvation. Tire issue versus suspension issue. Sticking brake versus alignment pull. These pairs create repeat parts replacement because each side can imitate the other. The fix is to force one confirming test before any purchase.
How to turn a matrix result into the next proving test
Use the fastest test to place the fault in a system, then run one deeper proof test inside that system. Example: if the matrix points to charging, test system voltage under load and inspect belt drive. If the matrix points to fuel delivery, confirm pressure behavior cold and hot rather than replacing the pump on sound alone.
How do I diagnose a vehicle problem without replacing parts first?
Use an evidence ladder: symptom, code, measurement, confirmation. A part gets replaced only after one test points at its system and another test supports the specific failure. This keeps maintenance items, false codes, and secondary symptoms from driving the repair bill.
Use evidence ladders
Start with the symptom. Add code context. Then get a measurement such as battery test result, charging output, coolant pressure clue, or misfire data. Finally, confirm the suspected fault by changing the condition or isolating the circuit. Codes name a problem area. They do not name the part to buy.
Run a parasitic draw test for overnight drain
If the battery dies after sitting, test for key-off current draw with an amperage meter. Let modules go to sleep, then isolate the drain fuse by fuse. That is the clean path for overnight battery drain diagnosis. Replacing the battery first often hides the problem for a short time and sends the same car back.
Separate maintenance items from root cause
Old spark plugs, restricted filters, and worn belts can worsen a fault without being the root cause. If the plugs are overdue and the scan tool shows one coil-related misfire pattern, the service item and the actual failed part may be different. Replace based on proof, not because the parts are easy to reach.
Know when the next step needs a shop-level test
Compression concerns, advanced fuel pressure diagnosis, ABS hydraulic faults, intermittent wiring opens, and some current-draw or module issues need deeper tools and service information. That is not failure. It is simply the point where the next proving test costs more than guessing wrong.
Frequently asked questions
How do I troubleshoot a car problem step by step?
Start by reproducing the symptom safely and writing down when it happens: cold, hot, idle, load, braking, or highway speed. Check battery condition, fluids, and warning lights. Scan for codes, then choose one confirming test that can prove or reject the most likely system before replacing anything.
What should I check first when my car won’t start?
Check whether the engine cranks, how fast it cranks, and whether the dash stays bright. Then inspect battery terminals, battery state of charge, and fuses, and scan for codes. If it cranks, split the fault into spark, fuel, air, and control inputs rather than buying parts on a hunch.
How do I tell if the battery, starter, or alternator is the issue?
Battery faults usually show up before or during cranking, starter faults show up as clicking, dragging, or engagement failure, and alternator faults show up after the engine starts with low charging output or a battery warning. Test resting battery condition, starter behavior, and system voltage under load in that order.
What causes a car to overheat in traffic but not on the highway?
That pattern usually points to low-speed cooling trouble: radiator fan failure, weak airflow, low coolant, trapped air, thermostat issues, or pressure loss. Highway airflow can hide those faults for a while. Confirm fan operation first, then check coolant level, leaks, and how temperature changes at idle.
What does a flashing check engine light mean?
A flashing check engine light usually signals an active misfire serious enough to risk catalyst damage, so the vehicle should not be driven except to move it out of immediate danger. Scan for misfire data, review freeze-frame, and inspect ignition and fuel delivery before restarting repeated test drives.
What tools do I need for basic vehicle troubleshooting?
The short list is an OBD-II scan tool, a multimeter or battery tester, and a simple way to record symptoms. For deeper work, add cooling pressure checks, fuel pressure capability where applicable, and brake inspection basics. Good tools prove one system good or bad, they do not replace a test plan.
