How to Install an Aftermarket Steering Wheel on Can-Am
Install the wheel only after you match the Can-Am spline and hub to your model, center the front wheels, and clock the hub so the new wheel lands straight. If the hub is wrong, the wheel will fit poorly or sit off-center. Get it wrong and you can end up with a crooked wheel, an inoperative horn, or a wheel that blocks controls. This guide covers hub selection, wheel removal, horn wiring, centering, and the final alignment check.
This guide is part of our Can-Am wheels and steering upgrades series.
Before you start
This swap fixes a worn wheel, a damaged rim, a poor grip shape, or a cockpit that needs a different steering feel. It also gives you a chance to correct a wheel that no longer points straight after previous work. If the wheel is only worn or slick, a steering wheel cover may be the better choice.
Quick-release setups are a separate path. They still need a vehicle-specific hub or adapter, and they are usually chosen for theft prevention or race-oriented use. Wheel style matters too: D-shaped, flat-bottom, racing-style, suede, leather, and heated options are all common choices for Can-Am Maverick X3 applications.

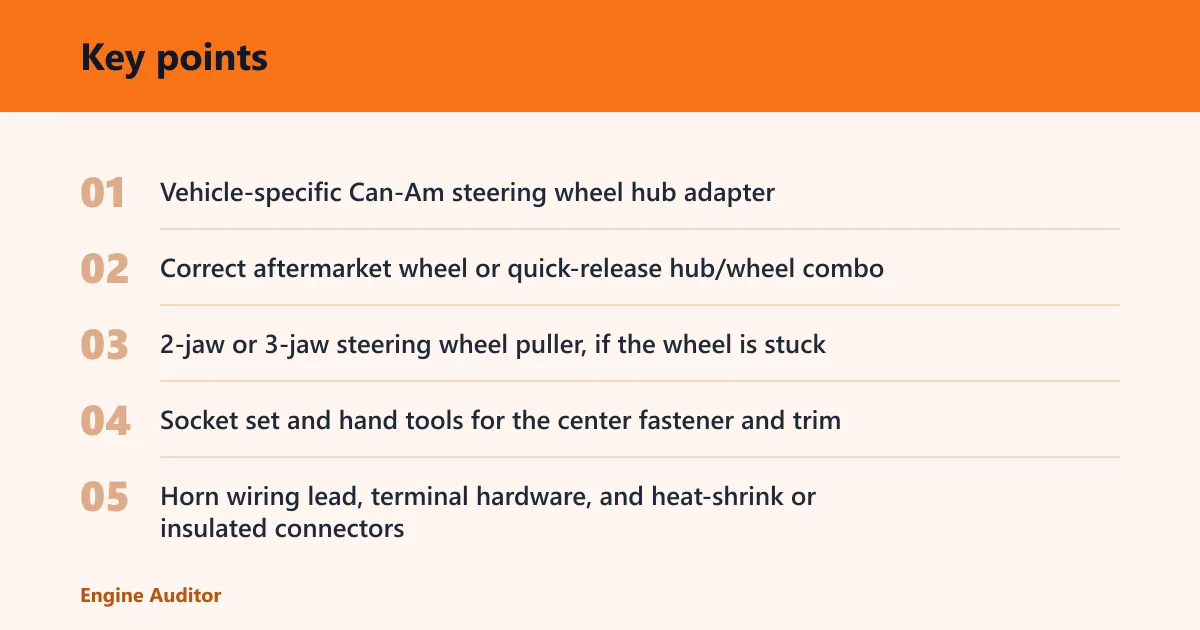

What you’ll need
- Vehicle-specific Can-Am steering wheel hub adapter
- Correct aftermarket wheel or quick-release hub/wheel combo
- Socket set and hand tools for the center fastener and trim
- Horn wiring lead, terminal hardware, and heat-shrink or insulated connectors
- Thread locker if the wheel or hub hardware calls for it
- Battery wrench or disconnect tool
Can-Am steering wheel decision table
| Can-Am platform | Wheel removal method | Hub/adapter needed | Horn wiring note | Centering risk | Common mistake to avoid |
|---|---|---|---|---|---|
| Maverick X3 | Center fastener or puller if stuck | Vehicle-specific hub adapter required | Route the horn lead through the hub center before tightening | Moderate; older OG Mavericks X3 may not reindex by simply turning the wheel | Assuming a universal wheel bolts straight on |
| Newer Maverick X3 | Center fastener; puller only if the wheel binds on the shaft | Vehicle-specific hub adapter required | Test the horn after the hub is seated, before final trim goes back on | Lower if the wheel is removed and reinstalled straight | Trying to fix centering with the wheel alone when the hub was clocked wrong |
| Maverick or Defender variants with compatible aftermarket listings | Cap-based retainer or puller, depending on shaft fit | Match platform and generation; do not assume X3 parts fit | Single lead through the hub center is common; verify the return path | High if the shaft splines do not permit easy reindexing | Forcing the hub onto a spline mismatch |
| Quick-release setup on an X3 | Wheel comes off through the quick-release body after the hub is installed | Yes; quick-release hardware still needs a compatible hub/adapter | Keep the horn circuit continuous through the release hardware | Moderate; every interface adds another clocking point | Buying a quick-release wheel without the matching base hub |
How do you choose the right hub?
Pick the hub by exact platform and generation first, then match the steering shaft splines and wheel bolt pattern. A hub adapter is the interface between the steering shaft and the aftermarket wheel, so it has to fit both sides cleanly. A universal wheel only fits if the hub does the vehicle-specific work.
Everything Can-Am Offroad lists steering wheel hubs and adapters for the Can-Am Maverick X3, along with quick-release steering wheels, heated steering wheels, and racing steering wheels for that application. That is a product-family fitment map, not a license to mix parts across every Can-Am model.
- Read the fitment line for your exact model and generation.
- Check whether the hub is for a standard wheel or a quick-release base.
- Confirm the bolt pattern on the wheel side before you buy hardware.
- Verify whether the hub includes horn contact parts or needs separate wiring.
How do you remove the factory wheel?
Point the front wheels straight ahead. Disconnect the battery, then wait five minutes before you touch the wheel area. BAVMODS recommends that delay, and it also says to make sure both the steering wheel and the car’s wheels are straight before removal. That straight-ahead position is the baseline for getting the new wheel back centered.
Some Can-Am wheels may come off after loosening the center fastener under the cap, while others may need a 2-jaw or 3-jaw puller if they are stuck on the taper or splines. Others need a 2-jaw or 3-jaw puller if the wheel is stuck on the taper or splines. Do not force the shaft.
- Center the front wheels and mark the wheel’s top position with tape.
- Remove the center cap or trim to reach the retainer.
- Loosen and remove the center fastener.
- If the wheel stays stuck, fit a 2-jaw or 3-jaw puller and tighten it evenly.
- Stop if the wheel starts to cock sideways; reset the puller before continuing.
How do you install and center the new wheel?
Install the hub first, then route the horn lead through the hub center before tightening anything down. Seat the hub fully on the steering shaft splines, because spline indexing sets the wheel’s orientation. On some older Maverick X3 setups, simple reindexing by turning the wheel on the shaft may not solve a crooked wheel. Newer Maverick X3 setups can often be corrected by removing and reinstalling the wheel straight.
If the wheel lands slightly off-center, use the hub clocking position first. If the steering wheel is still off after that, the tie rods may already be near their adjustment limit, and the fix may need to happen at the alignment points rather than at the wheel itself.
- Slide the hub onto the shaft splines without forcing it.
- Set the hub so the wheel will point straight ahead at center.
- Pass the horn lead through the hub center and secure the connector.
- Tighten the wheel and hub hardware in the correct sequence for the kit.
- Reconnect the battery and test the horn before the final trim goes back on.
- Turn the steering from lock to lock to confirm nothing binds.
What can go wrong during the swap?
Say the new wheel ends up about 15 degrees left of center after installation. The front tires may still be straight, but the hub was clocked on the wrong spline position. Pull the wheel, move one indexing position if the shaft allows it, and recheck before you blame the alignment.
Suppose the wheel seats partway and the center fastener starts threading badly. That usually means the hub is not fully on the shaft, or the spline pattern does not match the platform. Stop and inspect the shaft and hub before tightening. Forcing it can damage the fit.

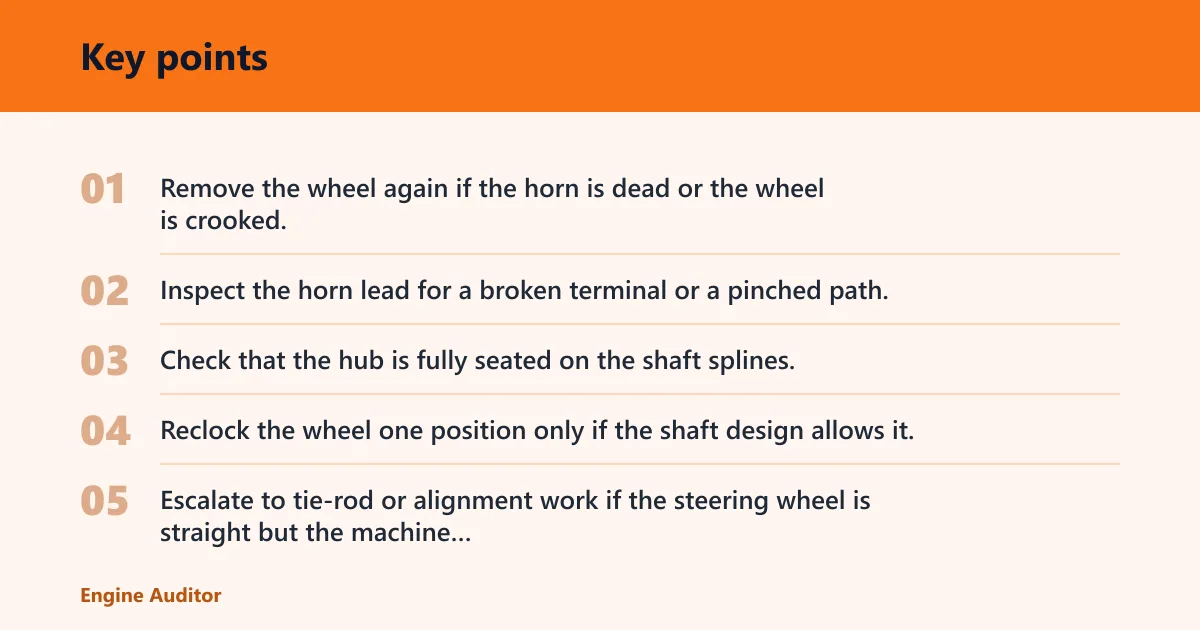

- Remove the wheel again if the horn is dead or the wheel is crooked.
- Inspect the horn lead for a broken terminal or a pinched path.
- Check that the hub is fully seated on the shaft splines.
- Reclock the wheel one position only if the shaft design allows it.
- Escalate to tie-rod or alignment work if the steering wheel is straight but the machine tracks off-center.
If that didn’t work
If the wheel still will not center, do not keep chasing it by turning the wheel on the shaft. The remaining fix is usually outside the steering wheel itself. Inspect toe settings, tie-rod length, and whether the steering gear is already near its adjustment range.
That is also the point where a bad hub choice becomes obvious. A hub that is close, but not correct, can feel almost seated and still leave the wheel off-center or the horn unreliable.
Common mistakes
- Forcing the hub onto the wrong shaft. Stop and confirm the platform, generation, and spline match first.
- Skipping the horn lead. Route it through the hub center before tightening the wheel.
- Using the wheel to fix alignment. The wheel can correct clocking, not a bad toe setting.
- Stopping before full seating. A partially seated hub can strip threads or shift under load.
- Choosing a universal wheel without the adapter. The wheel side may fit, but the shaft side still needs the correct hub.
Frequently asked questions
How do I install an aftermarket steering wheel on a Can-Am?
Match the vehicle-specific hub to your exact Can-Am platform, center the front wheels, install the hub on the shaft splines, route the horn lead through the hub center, then tighten the wheel and test the horn. If the wheel lands off-center, correct the clocking before reassembling the trim.
Do I need a hub adapter for a Can-Am steering wheel swap?
Yes for most aftermarket wheels. The hub adapter is the part that bridges the Can-Am steering shaft to the wheel’s bolt pattern. Without the correct adapter, even a properly sized wheel will not mount correctly or center reliably on the shaft.
Can I reuse the factory horn button on an aftermarket Can-Am steering wheel?
Sometimes, but only if the wheel and hub kit are built to accept it. The horn circuit still has to pass through the hub center and make a reliable contact path. If the button or contact parts are missing, use the horn hardware supplied for that kit instead.
What tools do I need to remove a Can-Am steering wheel?
Use the hand tools needed for the center retainer, plus a 2-jaw or 3-jaw puller if the wheel is stuck on the taper or splines. Disconnect the battery first and wait five minutes before starting, then keep the front wheels straight so the new wheel can go back on correctly.
How do I keep an aftermarket steering wheel centered on a Can-Am?
Center the front wheels first, clock the hub before tightening, and verify the steering shaft splines are indexed in the correct position. If the wheel still sits off after that, the tie rods may need adjustment, because the wheel alone cannot correct every centering problem.
Will a universal steering wheel fit my Can-Am Maverick or Defender?
Not by itself. A universal wheel can work only when it is paired with the correct vehicle-specific hub or adapter for that Maverick or Defender generation. The wheel bolt pattern and the shaft interface both have to match, and the fit must be checked before final tightening.
Do some Can-Am models need a steering wheel puller?
Yes. Some wheels come off cleanly after the center retainer is removed, while others need a 2-jaw or 3-jaw puller because they are stuck on the shaft taper or splines. Pullers are useful when the wheel will not release evenly by hand.
Can I install a quick-release steering wheel on a Can-Am?
Yes, if the quick-release base is paired with the correct Can-Am hub or adapter. Quick-release setups are common in performance or theft-prevention builds, but they still depend on correct shaft fitment, horn routing, and a wheel that clocks straight when installed.
What causes a Can-Am steering wheel to not go back on straight?
The usual causes are wrong hub indexing, a mismatched adapter, or a shaft that does not allow simple reindexing. If the front wheels are straight but the wheel is not, remove it, correct the hub clocking, and only then check whether tie-rod adjustment is needed.
