How Do You Fix a Transmission Control Module: Step-by-Step Guide

Fixing a transmission control module (TCM) can feel overwhelming, especially if you’re not a mechanic. But if your car is showing strange symptoms—like erratic shifting, warning lights, or even refusing to move—understanding how to handle a TCM problem can save you time and money.

In this guide, you’ll learn what a TCM does, how to spot common issues, and the exact steps to diagnose and repair or replace a faulty module. Whether you’re a curious car owner or want to tackle a repair yourself, this article will give you the confidence to deal with TCM troubles the right way.

What Is A Transmission Control Module?

The transmission control module is an electronic brain for your car’s automatic transmission. It receives signals from sensors and tells the transmission when and how to shift gears. The TCM works closely with the engine control module (ECM) to balance power and efficiency. If the TCM fails, your car may not shift correctly, could get stuck in a single gear, or even refuse to drive.

Modern cars use complex TCMs with advanced software. Older vehicles might have simpler versions, but they all play a vital role. A working TCM keeps your ride smooth, protects your transmission from damage, and helps maintain fuel economy.

How To Recognize Transmission Control Module Problems

Before fixing a TCM, it’s essential to spot the warning signs early. Problems with the TCM can look like other issues, so careful diagnosis is key. Here are the most common symptoms:

• Check Engine or Transmission Warning Light: These lights on your dashboard often indicate a TCM or related sensor issue.
• Erratic Shifting: The transmission may shift late, early, or not at all.
• Stuck in a Gear: Many vehicles go into “limp mode”—stuck in second or third gear to protect the transmission.
• No Response When Shifting: You move the gear lever but nothing happens, or there’s a long delay.
• Poor Fuel Economy: Incorrect shifts cause the engine to work harder, using more fuel.
• Harsh or Unusual Noises: Clunks, bangs, or grinding when shifting.

If you notice one or more of these, don’t ignore them. Driving with a bad TCM can cause expensive transmission damage. Sometimes, the symptoms are subtle—just a slight delay or a single warning light. Early action can prevent bigger problems.

Tools And Materials Needed For Tcm Diagnosis And Repair

Having the right tools makes fixing a TCM much easier. Here’s what you’ll need:

• OBD-II scanner: For reading and clearing error codes.
• Basic hand tools: Screwdrivers, socket set, wrenches.
• Multimeter: For checking voltages and continuity.
• Service manual: Your car’s specific repair guide.
• Replacement TCM: If the module is faulty.
• Dielectric grease: For connector protection.
• Protective gear: Gloves and safety glasses.

Some repairs require extra tools depending on your car’s make and model. Always consult your service manual before starting.

Step-by-step Guide: How To Fix A Transmission Control Module

Fixing a TCM involves several steps. Sometimes, a simple reset or cleaning solves the problem. Other times, you may need to replace the module. Here’s a clear, practical process to follow:

1. Confirm The Tcm Is The Problem

Many transmission issues come from sensors, wiring, or even low fluid—not the TCM itself. Start by:

• Scanning for error codes: Connect the OBD-II scanner to the car’s port (usually under the dashboard). Read the codes and note any related to the transmission or TCM.
• Researching error codes: Look up what each code means in your service manual or online. Common TCM codes include P0700 (general TCM fault), P0606 (TCM processor fault), and others specific to make/model.
• Checking transmission fluid: Low or dirty fluid can mimic TCM symptoms.
• Inspecting wiring and connectors: Look for loose, corroded, or broken wires around the TCM and transmission.

Non-obvious insight: Many TCM codes are triggered by faulty sensors (like speed sensors). Always check sensor wiring before assuming the module is bad.

2. Reset Or Reflash The Tcm

Sometimes, the TCM just needs a reset. This can clear temporary glitches or software bugs.

• Disconnect the battery: Remove the negative terminal for 15-30 minutes, then reconnect.
• Use a scan tool: Some advanced OBD-II scanners let you reset or reflash the TCM directly. Follow your scanner’s instructions.
• Test drive: After resetting, drive the car gently for 10-20 minutes. See if symptoms return.

If the car shifts normally after a reset, the problem may have been a software hiccup.

3. Cleaning The Tcm Connectors

Moisture, dirt, or corrosion in the connectors can cause poor communication with the TCM.

• Locate the TCM: Often under the hood, near the battery, or inside the transmission. Your service manual will show the exact spot.
• Disconnect the module: Use care—don’t force the connectors.
• Check for corrosion: Green or white powder means corrosion is present.
• Clean connectors: Use electrical contact cleaner and a soft brush. Let dry fully.
• Apply dielectric grease: This protects against future moisture.
• Reconnect everything: Make sure all connections are tight.

Example: Many Chrysler vehicles have TCMs mounted in the engine bay, where water can enter connectors. Cleaning often solves strange shifting problems.

4. Repairing Or Replacing Damaged Wiring

A common beginner mistake is ignoring wiring. A single broken wire can cause total TCM failure.

• Inspect all wires: Follow each wire from the TCM to the transmission and sensors.
• Look for wear: Cracks, burns, or pinched wires are red flags.
• Repair as needed: Use heat-shrink tubing, solder, or crimp connectors for a reliable fix.
• Secure wiring: Keep wires away from hot or moving parts.

Non-obvious insight: In older cars, rodents sometimes chew TCM wires, causing mystery faults.

5. Testing The Tcm

If you suspect the module itself, test it before buying a replacement.

• Use a multimeter: Check for correct input voltages at the TCM harness (see service manual for specs).
• Check ground connections: Poor ground can cause erratic behavior.
• Test communication lines: Some scan tools can test the data connection between TCM and ECM.

If everything checks out but the TCM still doesn’t work, replacement is likely needed.

6. Removing And Replacing The Tcm

If the module is confirmed faulty, replacing it is often the best solution. Here’s how:

• Disconnect the battery: Always do this before handling electronics.
• Remove any covers or panels: Some TCMs are behind kick panels or under seats.
• Disconnect wiring harness: Press the release tab and pull gently.
• Remove mounting bolts or clips: Set aside for reinstallation.
• Install the new TCM: Make sure it matches your car’s exact year, make, and model. Some TCMs require programming.
• Reconnect everything: Double-check all connections.
• Reconnect the battery: Start the car and watch for warning lights.

7. Programming Or Relearning The Tcm

Modern TCMs often need to be programmed to your car’s VIN and settings.

• Use a scan tool or visit a dealer: Some modules “learn” automatically, while others need special software.
• Follow relearn procedure: This may involve driving at certain speeds or shifting through all gears.
• Clear old codes: Use your scanner to erase stored codes.

A TCM that isn’t programmed correctly may work poorly or not at all.

Diy Vs Professional Repair: Which Is Better?

Fixing a TCM at home can save hundreds of dollars, but it’s not always the best choice. Compare the two approaches below:

If you’re comfortable with car repairs and have the right tools, many TCM jobs are DIY-friendly. But if programming is needed or the module is buried deep inside the car, a pro might be the safer bet.

Common Mistakes To Avoid When Fixing A Tcm

Even experienced DIYers can make errors. Avoid these pitfalls:

• Skipping the basics: Always check fluid, fuses, and wiring before replacing the TCM.
• Not disconnecting the battery: Failing to do this can damage electronics or cause shocks.
• Forgetting to program the new TCM: Some modules won’t work until programmed to your car.
• Using the wrong part: TCMs can look alike but have different software.
• Ignoring service bulletins: Manufacturers sometimes release updates or recalls—check online for your car.

Failing to clear old error codes after repair can also cause confusion. Always reset codes and test drive the car.

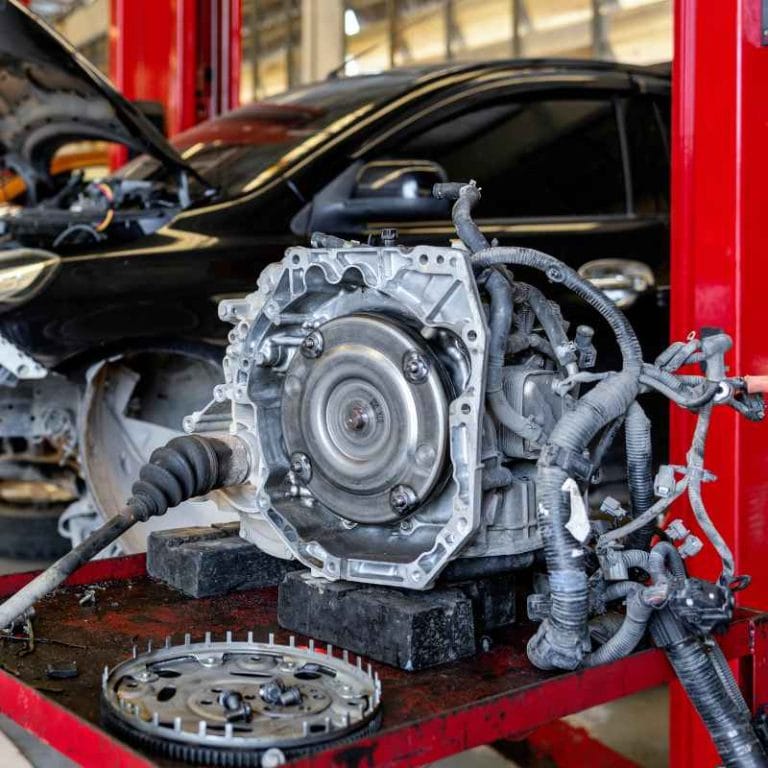

Tcm Replacement Cost: What Should You Expect?

The cost to repair or replace a TCM varies widely. Here’s a breakdown:

Prices depend on your car’s make and model. Luxury and European vehicles usually cost more.

Preventing Future Tcm Issues

Once your TCM is fixed, take these steps to keep it healthy:

• Check transmission fluid regularly: Low or dirty fluid stresses the TCM and the transmission.
• Fix leaks quickly: Fluid leaks can damage both wiring and electronics.
• Keep electrical connectors clean: Moisture and dirt are the enemy.
• Don’t ignore warning lights: Early diagnosis saves money.
• Update software: Some manufacturers release TCM software updates that improve reliability.

A little prevention goes a long way. For example, on certain Ford models, a TCM software update can resolve shifting issues without hardware changes.

When To Replace Vs Repair Your Tcm

Not all TCM problems require total replacement. Use this decision guide:

If in doubt, get a second opinion from a trusted mechanic.

What To Do After Fixing Your Tcm

After you finish the repair, it’s important to:

• Clear all error codes: Use your OBD-II scanner.
• Test drive in all gears: Check for smooth shifts and normal operation.
• Monitor for warning lights: If a light comes back, re-check your work.
• Inspect for leaks or loose wires: A final visual check can catch problems early.

If everything works well after a week of driving, your fix is likely successful.

Real-world Example: Diagnosing A Tcm On A 2013 Chevy Cruze

Let’s look at a practical example. A 2013 Chevy Cruze owner reports the transmission won’t shift out of second gear, and the check engine light is on.

• Step 1: Scan for codes. Finds P0700 (TCM fault) and P0715 (input speed sensor).
• Step 2: Check fluid. Level is good.
• Step 3: Inspect wiring. Finds a chewed wire near the transmission—likely a mouse.
• Step 4: Repair wire, clear codes, test drive. Problem solved—no TCM replacement needed.

This shows why careful diagnosis matters. Jumping to replace the TCM would have wasted money.

Frequently Asked Questions

What Causes A Tcm To Fail?

Heat, moisture, vibration, and electrical surges are the top causes of TCM failure. Water intrusion (from leaks or washing the engine) is especially damaging. Old age and manufacturing defects can also play a role.

Can A Bad Tcm Damage My Transmission?

Yes. A faulty TCM can cause improper shifts, which may overheat or mechanically stress the transmission. Continuing to drive with TCM problems can lead to much higher repair bills.

Do I Need To Reprogram A New Tcm?

For most modern vehicles, yes. The new module must “learn” your car’s settings. Some cars automatically relearn, but many require special tools or a dealer visit.

How Long Does It Take To Replace A Tcm?

Simple replacements take 30–60 minutes if the module is easy to access. Complex vehicles or those needing programming can take 2–3 hours or more.

Where Can I Find Reliable Tcm Repair Information?

The best sources are your vehicle’s service manual and reputable automotive forums. For general info, the National Highway Traffic Safety Administration and Wikipedia offer helpful overviews.

Fixing a transmission control module might sound difficult, but with careful steps and the right tools, many car owners can do it themselves. Understanding your car’s warning signs and taking prompt action helps keep your transmission and wallet in good shape.

If you’re ever unsure, don’t hesitate to seek help from a trusted mechanic.
