Many car owners wonder, “Can a Brake Booster Cause a Car to Shut Off?” This question can seem tricky, especially if you’re new to car troubles. It’s easy to feel a bit lost when your car acts strangely. But don’t worry, figuring out car issues doesn’t have to be hard.
We will break down this common problem in a simple, easy-to-follow way. Let’s look at what your brake booster does and how it might affect your car’s engine.

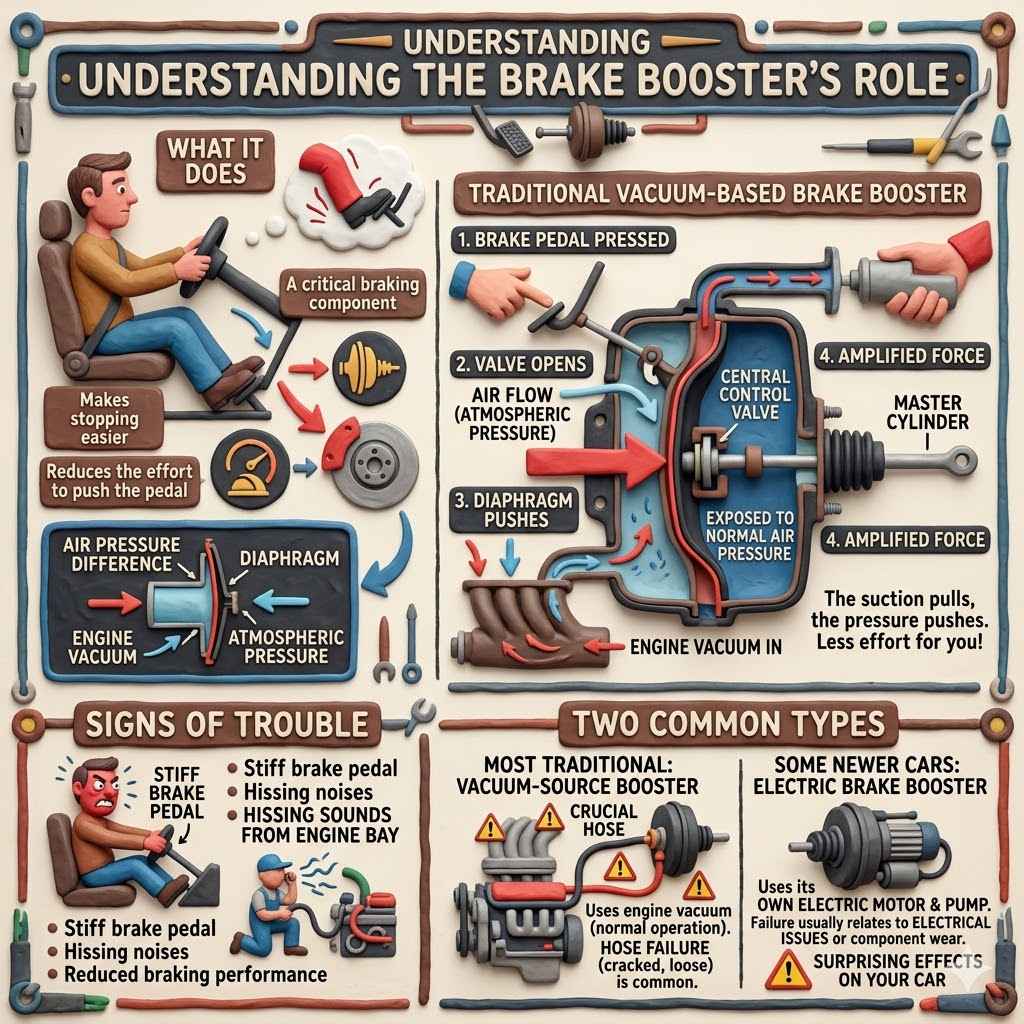

Understanding the Brake Booster’s Role
The brake booster is a really important part of your car’s braking system. It works with your brake pedal to make stopping easier. Without it, you’d have to push the brake pedal much harder to slow down.
This makes driving much more tiring and less safe. Think of it as a helper that gives your braking power an extra boost. It uses engine vacuum or an electric pump to do its job, making your brakes feel light and responsive.
How a Brake Booster Works
A brake booster is basically an air cylinder. It uses the air pressure difference created by your engine to help you press the brakes. When you press the brake pedal, it opens a valve.
This valve lets air flow into the booster. The engine creates a vacuum, which is like a suction effect. This vacuum pulls on one side of a diaphragm inside the booster.
The other side is exposed to normal air pressure. This difference in pressure pushes the diaphragm and helps you push the brake pedal harder with less effort.
The entire process happens very quickly, so you feel the brakes engage almost instantly. A healthy brake booster means you can stop your car safely with a light touch of the pedal. If it isn’t working right, you’ll notice your brake pedal feels stiff.
You might also hear hissing sounds coming from the engine bay. These are all signs that the booster needs attention.
The Vacuum Source
Most traditional brake boosters use vacuum from the engine. This vacuum is created as the engine pulls air in during its normal operation. A hose connects the engine’s intake manifold to the brake booster.
This hose is crucial for the booster to function. If this hose is cracked, loose, or blocked, the vacuum supply will be interrupted. This loss of vacuum is a common reason why a brake booster might not work correctly.
Some newer cars use electric brake boosters. These don’t rely on engine vacuum. Instead, they have their own electric motor and pump.
This electric system creates the boost needed for braking. While electric boosters can be more reliable in some ways, they can also fail. Their failure often relates to electrical issues or internal component wear.
Regardless of the type, a problem with the booster can have surprising effects on your car.
Can a Brake Booster Cause a Car to Shut Off?
Yes, a brake booster can indeed cause a car to shut off. This might seem strange because it’s part of the braking system, not the engine. However, the brake booster is closely linked to the engine’s operation, especially those that rely on vacuum.
When the brake booster fails in a specific way, it can create a situation where the engine doesn’t get enough air or too much of something else, leading it to stall.
Vacuum Leaks and Engine Stalling
The most common way a brake booster can lead to a car shutting off is through a vacuum leak. Remember the hose that connects the engine to the brake booster? If this hose has a hole, crack, or is not securely attached, it creates a vacuum leak.
This leak allows unmetered air to enter the engine’s intake system.
Your car’s engine management system is designed to measure the amount of air entering the engine. This measurement is critical for calculating the correct amount of fuel to inject. When a vacuum leak occurs, extra air enters the engine that the computer doesn’t know about.
This throws off the air-fuel mixture. The mixture becomes too lean, meaning there’s too much air and not enough fuel.
This lean condition can cause the engine to run rough, hesitate, or even stall, especially at idle. When you’re stopped at a light or in slow traffic, the engine is already running at its lowest speed. A vacuum leak makes it even harder for the engine to maintain a stable idle.
If the leak is large enough, the engine can simply die.
Specific Failure Modes
A faulty brake booster itself can also cause a vacuum leak. The internal diaphragm inside the booster can rupture. This rupture creates a direct path for air to leak from the outside into the booster and then into the intake system through the vacuum hose.
This is a significant leak and will very likely cause stalling.
Another issue is a faulty check valve. The brake booster has a check valve that allows vacuum to enter but prevents air from going back out. If this valve fails, it can disrupt the vacuum supply.
While it might not always cause a stall, in some cases, it can contribute to unstable engine operation.
Real-Life Example
Imagine Sarah was driving her car and stopped at a red light. Suddenly, her car sputtered and died. She tried to restart it, and it cranked but wouldn’t catch.
She noticed her brake pedal felt very hard when she tried to move the car into neutral. A mechanic found a large crack in the hose connecting the brake booster to the engine. This crack caused a massive vacuum leak, starving the engine of the correct air-fuel mix and causing it to stall.
Once the hose was replaced, the car started and ran smoothly.
Symptoms of a Failing Brake Booster
Recognizing the signs of a failing brake booster is key to preventing bigger problems, including your car shutting off. These symptoms can appear gradually or suddenly. Paying attention to how your car feels and sounds can help you identify an issue early.
Stiff Brake Pedal
The most obvious sign of a brake booster problem is a brake pedal that feels unusually stiff or hard to press. When the booster is working, it significantly reduces the force needed to apply the brakes. If you have to push down much harder than usual to slow the car, the booster is likely not providing assistance.
This is because it’s not getting vacuum, or its internal components are not functioning.
This stiffness is not just inconvenient; it’s a safety concern. Harder braking means you need more distance to stop, increasing the risk of an accident. If you notice your pedal has become significantly harder to push, it’s time to have it checked immediately.
Hissing Sound
A common symptom of a vacuum leak from the brake booster is a hissing sound. This sound often becomes noticeable when you press the brake pedal. The hissing is the sound of air escaping from the system where it shouldn’t be.
It can be subtle at first, and you might dismiss it as normal engine noise.
If you hear this hissing sound, it’s a strong indicator of a leak. The leak could be in the vacuum hose connecting the booster to the engine, or it could be within the booster itself. The location of the sound might help pinpoint the problem area, but a professional diagnosis is usually needed.
Slower Engine Idle
As we discussed, a vacuum leak can cause your engine to run lean. This often results in a rough or unstable engine idle. The engine might seem to shake more than usual when stopped.
In some cases, the idle speed might drop unusually low.
If the vacuum leak is significant, the engine might struggle to maintain its idle speed and can stall. This is especially true when the engine is cold or when you put it in gear. The engine management system tries to compensate, but a large leak can be too much for it to handle.
Brake Performance Issues
Beyond stiffness, you might notice other brake performance issues. The brakes might feel less responsive. You might need to press the pedal further to get the same braking effect.
In severe cases, the brakes might feel almost completely ineffective.
It’s also possible that a failing brake booster can lead to a “spongy” brake pedal feel. This is often related to air in the brake lines, but a severely malfunctioning booster can indirectly contribute to a less predictable braking feel. Always ensure your brake system is in top condition for your safety.
Diagnosing Brake Booster Issues
Diagnosing a brake booster problem requires a systematic approach. Since a faulty booster can mimic other engine issues, it’s important to check the most common causes first. A qualified mechanic will use a combination of visual checks, listening, and specific tests.
Visual Inspection of Vacuum Lines
The first step in diagnosis is usually a thorough visual inspection of all vacuum lines connected to the brake booster. Mechanics will look for any signs of damage. This includes cracks, tears, kinks, or signs of softening or swelling of the rubber hoses.
They will also ensure all connections are secure and that no hoses have become disconnected.
A vacuum leak can also occur at the connection point where the hose attaches to the booster or the intake manifold. These connections should be checked for tightness and for any damage to the grommets or fittings. Sometimes, a simple loose hose clamp is the culprit.
Checking for Vacuum Leaks with a Smoke Machine
One of the most effective ways to find vacuum leaks is by using a smoke machine. A smoke machine forces a harmless, visible smoke into the vacuum system. If there are any leaks, the smoke will escape and become visible, showing exactly where the problem lies.
This is particularly useful for leaks that are not obvious during a visual inspection.
The smoke will seep out of any cracked hoses, loose connections, or holes in the booster itself. This method is precise and helps technicians quickly isolate the fault. It can also find leaks in other vacuum-operated systems in the car.
Testing the Brake Booster Itself
Mechanics can perform specific tests on the brake booster to determine if it’s functioning correctly. One common test involves pumping the brake pedal with the engine off until resistance is felt. Then, with the pedal held down firmly, the engine is started.
If the brake booster is working properly, the brake pedal should move down slightly as vacuum is applied by the engine. If the pedal remains stiff or doesn’t move, it indicates a problem with the booster or its vacuum supply. Another test involves listening for the hissing sound while pressing the brake pedal, which can help confirm a leak.
Using a Vacuum Gauge
A vacuum gauge can be connected to the vacuum line leading to the brake booster. This tool measures the amount of vacuum the engine is producing. A healthy engine should produce a certain level of vacuum, typically between 15-20 inches of mercury at idle.
If the vacuum gauge shows low readings, it might indicate an engine problem that is affecting vacuum production, rather than a brake booster issue. However, if the engine is producing good vacuum, but the booster isn’t working, it points more directly to the booster itself or its immediate connections.
When the Engine Stalls
If your car stalls due to a brake booster issue, it’s usually a direct result of the vacuum leak it has created. This is a critical situation that needs immediate attention. The stalling means the engine lost its power, and you’ve lost power steering as well.
The Importance of Power Assist
When the engine stalls, the vacuum assist to the brake booster disappears. This is why your brake pedal suddenly feels very hard. You’ll need to use significant force to press the pedal.
This is a safety feature that alerts you to the engine problem. However, it also means you have greatly reduced braking ability.
It’s crucial to understand that even though the brake booster is failing, it’s often the vacuum leak it causes that leads to the stalling. The booster itself doesn’t have the power to directly shut off an engine. It’s the resulting imbalance in the air-fuel mixture that kills the engine.
What to Do If Your Car Stalls
If your car stalls while you’re driving, stay calm. Grip the steering wheel firmly because power steering will likely be gone. Try to steer the car to the side of the road as safely as possible.
Once you are stopped, you can attempt to restart the engine. If it starts and runs okay, but the brake pedal is still hard, you may have a temporary vacuum leak or a booster issue.
If the car stalls again, or if the brake pedal remains very hard, it’s best not to drive the car further. Call for a tow truck and have it taken to a qualified mechanic. Driving a car with compromised braking and potential stalling issues is extremely dangerous.
Repairing a Faulty Brake Booster
Replacing a brake booster is a common repair for mechanics. The process involves disconnecting the brake lines, the vacuum hose, and the linkage to the brake pedal. The old booster is then removed and
Cost of Repair
The cost of replacing a brake booster can vary. It depends on the make and model of your car and whether you use an original equipment manufacturer (OEM) part or an aftermarket one. Labor costs also play a significant role.
On average, the parts themselves can range from $100 to $300. Labor typically adds another $200 to $400. So, you might expect the total repair bill to be in the range of $300 to $700.
However, for some luxury or complex vehicles, the cost can be higher. It’s always a good idea to get a quote from your mechanic.
DIY vs. Professional Repair
While replacing a brake booster is technically possible for a DIY mechanic, it’s often best left to professionals. This job involves working with the brake system, which is critical for safety. Mistakes can have serious consequences.
Proper bleeding of the brake system is essential after

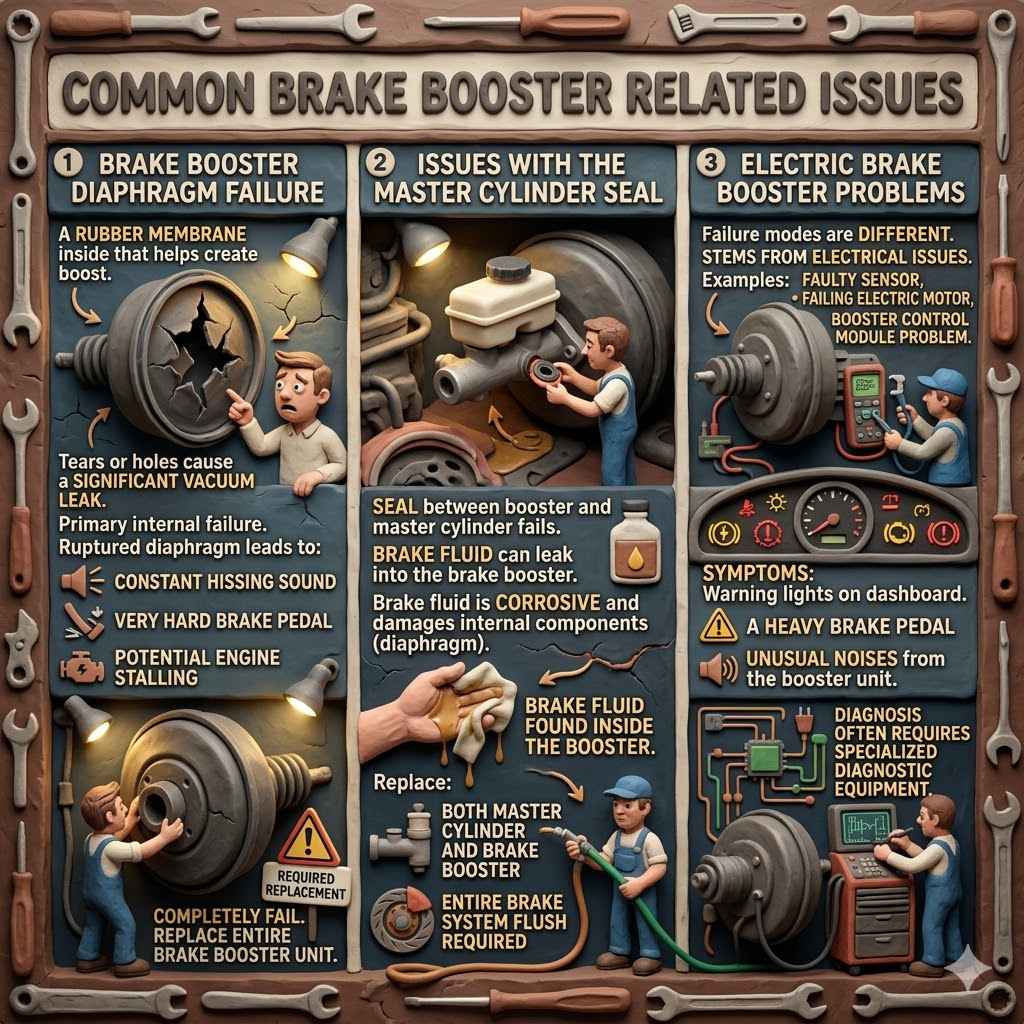

Common Brake Booster Related Issues
Beyond causing a car to shut off, brake boosters can present other problems. These issues typically relate to their function in assisting the brake pedal or maintaining the vacuum seal.
Brake Booster Diaphragm Failure
The diaphragm is a rubber membrane inside the brake booster that separates the two chambers. It’s what helps create the boost. If this diaphragm tears or develops holes, it will cause a significant vacuum leak.
This is one of the primary reasons a booster fails internally.
A ruptured diaphragm will lead to a constant hissing sound, a very hard brake pedal, and potential engine stalling. It’s a complete failure of the booster’s internal mechanism. This requires the entire brake booster unit to be replaced.
Issues with the Master Cylinder Seal
The brake booster mounts directly to the master cylinder. The master cylinder is where the brake fluid is stored and pressurized. There is a seal between the booster and the master cylinder.
If this seal fails, brake fluid can leak into the brake booster.
Brake fluid is corrosive and can damage the internal components of the brake booster, especially the diaphragm. If brake fluid is found inside the booster, both the master cylinder and the brake booster will likely need to be replaced. This also means the entire brake system needs to be flushed.
Electric Brake Booster Problems
For cars with electric brake boosters, the failure modes are different. Instead of vacuum leaks, problems usually stem from electrical issues. This could be a faulty sensor, a failing electric motor, or a problem with the booster’s control module.
Symptoms of electric brake booster failure can include warning lights on the dashboard, a heavy brake pedal, and sometimes unusual noises from the booster unit. Because they are electronically controlled, diagnosing these issues often requires specialized diagnostic equipment.
Frequently Asked Questions
Question: Can a brake booster cause my car to stall without a hard pedal?
Answer: Yes, it’s possible. If the vacuum leak is subtle or happens at a specific engine load, you might not immediately feel a very hard pedal, but the lean condition can still cause the engine to stall, especially at idle.
Question: How long does a brake booster usually last?
Answer: Brake boosters are generally durable components. They can last for the lifespan of the vehicle, often 100,000 miles or more. However, factors like age, exposure to heat, and contamination can shorten their lifespan.
Question: What happens if I ignore a failing brake booster?
Answer: Ignoring a failing brake booster is dangerous. You’ll have significantly reduced braking ability, increasing stopping distances. It can also lead to engine stalling, making driving unsafe.
Eventually, other brake system components could be affected.
Question: Can I drive my car if the brake pedal is hard?
Answer: You can usually drive a car with a hard brake pedal, but it is not recommended for safety reasons. Braking will be much more difficult, and your stopping distance will increase significantly. It’s best to get it repaired as soon as possible.
Question: Is a brake booster covered by my car’s warranty?
Answer: Brake boosters are typically considered wear-and-tear items and may not be covered by standard powertrain warranties. However, if your car is still under a comprehensive manufacturer’s warranty or an extended warranty, it might be covered. Check your warranty details.
Conclusion
Yes, a brake booster can absolutely cause a car to shut off. This happens when a faulty booster creates a vacuum leak, upsetting the engine’s air-fuel mixture and leading to a stall. Recognizing a stiff brake pedal or a hissing sound can help you catch this problem early.
Addressing brake booster issues promptly ensures your safety and keeps your car running smoothly.
